E12 Multi Parameter Oscillometry Modular Patient Monitor , 12 Inch TFT Display

  • 1
  • 2
  • 3

Brand Name : OEM

Model Number : E12

Certification : CE

Place of Origin : China, mainland

MOQ : 1PCS

Price : USD $900/pcs

Payment Terms : T/T, Western Union, MoneyGram, paypal

Supply Ability : 10000pcs/month

Delivery Time : within 5 working days after get payment

Packaging Details : Carton box

product name : Modular Patient Monitor

warranty : one year

packing : Carton Box

Display : 12 inch color TFT display

Contact Now

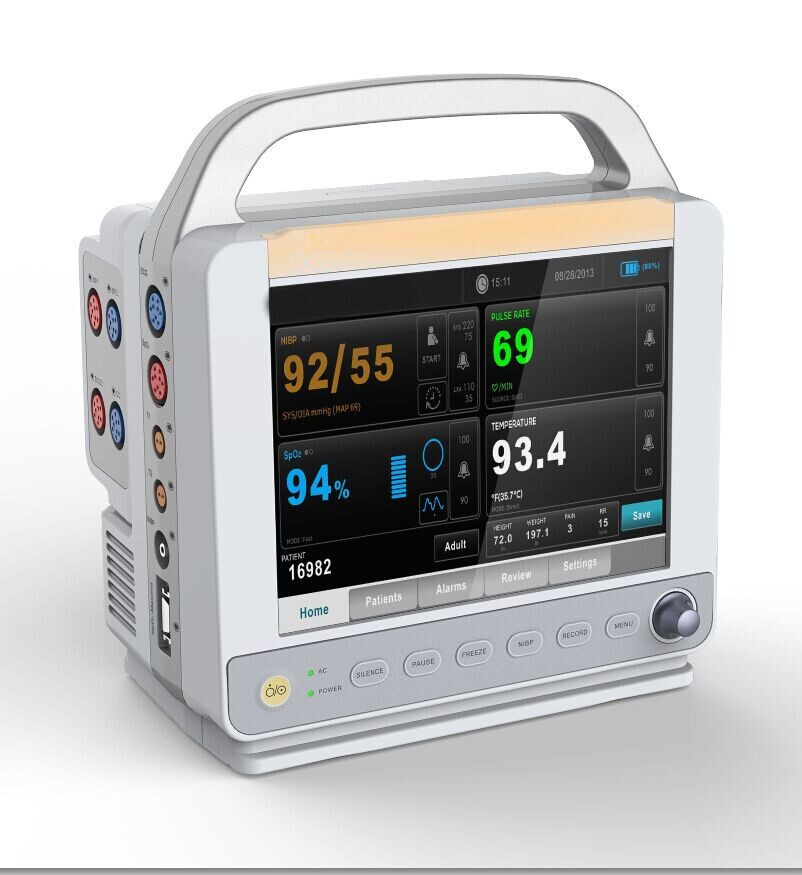

E12 12'' Multi-parameter Oscillometry Modular Patient Monitor



Model No.: E12



Features :

  • Modular designed, easy to maintain and replaced
  • 12 inch high definition color TFT display, optional touch screen
  • Standard 6-parameter : ECG, HR, NIBP, SPO2, RESP, TEMP
  • Optional thermal recorder, ETCO2 module, IBP module
  • 13 kinds of Arrhythmia analysis
  • 2-4 hours battery power supply
  • 720 hours of trend data playback
  • Sound, light, text alarm, volume adjustable
  • Connected to central monitoring system

NIBP:



Method Oscillometry
Modes Manual/Auto/Continuous
Auto measure time Adjustable
Measurement rang 10-270mmHg



ECG:



Lead mode 3-lead or 5-lead
Lead selection I, II, III, avR, avL, avF, V
Heart rate range: Adult 15-300bpm, Pediatric/Neonatal: 15-300bpm
ECG waveform 2 channels
Accuracy ± 1 bpm or ±1%
S-T segment detection Measurement range -0.2mv~2.0mv
Alarm Yes, audible and visual alarm, alarm events review



SPO2:



Measurement range 0-100%
Accuracy 70-100%, ±2% 0-69%,upspecified






Pulse rate:

Range 20-254bpm
Accuracy ±3bpm





Respiration:



Method RA-LL impedance
Range

Adult:0-120rpm

pediatric/neonatal:0-150rpm
Apnca alarm Yes





Temperature



Range 0-50°C
Apnca 0.1°C
Channel Dual-Channel



EtCO2 (option)



Measurement Mode Side-stream or mainstream
Measurement range EtCO2: 0-99mmHg
Accuracy CO2 concentration
Apnea alarm YES





IBP (option)



Channel 2 channels
Pressure transducer Sensitivity: 5( mV/V/mmHg)
Transducer sites ART, PA, CVP, RAP, LAP, ICP
Alarm range 10~300mmHg



Standard parameter & configuration

3/5 lead ECG, RESP, SpO2, NIMP, TEMP, PR



Optional parameter & configuration

2-IBP,ETCO2 , Network, Printer, Trolly, Wall support



E12 Multi Parameter Oscillometry Modular Patient Monitor , 12 Inch TFT DisplayE12 Multi Parameter Oscillometry Modular Patient Monitor , 12 Inch TFT DisplayE12 Multi Parameter Oscillometry Modular Patient Monitor , 12 Inch TFT DisplayE12 Multi Parameter Oscillometry Modular Patient Monitor , 12 Inch TFT Display





Packaging & Delivery

Packaging Details: Standard export carton packing.
Delivery Detail: Shipped in 5 days after payment
